One structure.
A complete training system.
Dual adjustable cable stations, barbell supports, an integrated multigrip pull-up bar, Handle & Band Storage Panels and six lateral plate storage pins in one compact structure designed for serious training. Choose Cable Rack on its own, as a standard Bundle, or configure the equipment your project actually needs.
THE CORE OF A PRIVATE GYM, IN ONE STRUCTURE.
Cable training, barbell work, pull-ups and integrated storage share the same structure instead of occupying the room as separate machines. The result is a compact training system that can then be configured with the bench, bars, weights and accessories required by the project.
THE SYSTEM, THEN THE CONFIGURATION.
- 01Two adjustable cable stations — 120 kg physical weight stack per side, 2:1 cable ratio and up to 60 kg effective handle resistance per side.
- 02Barbell supports and integrated multigrip pull-up bar.
- 03Integrated Handle & Band Storage Panels.
- 046 lateral plate storage pins.
- 0535 numbered rack positions with 50 mm nominal spacing.
- 06Compatible with Adjustable Bench, Olympic bars, bumpers and accessories. The standard Bundle is available, but equipment can also be configured individually.

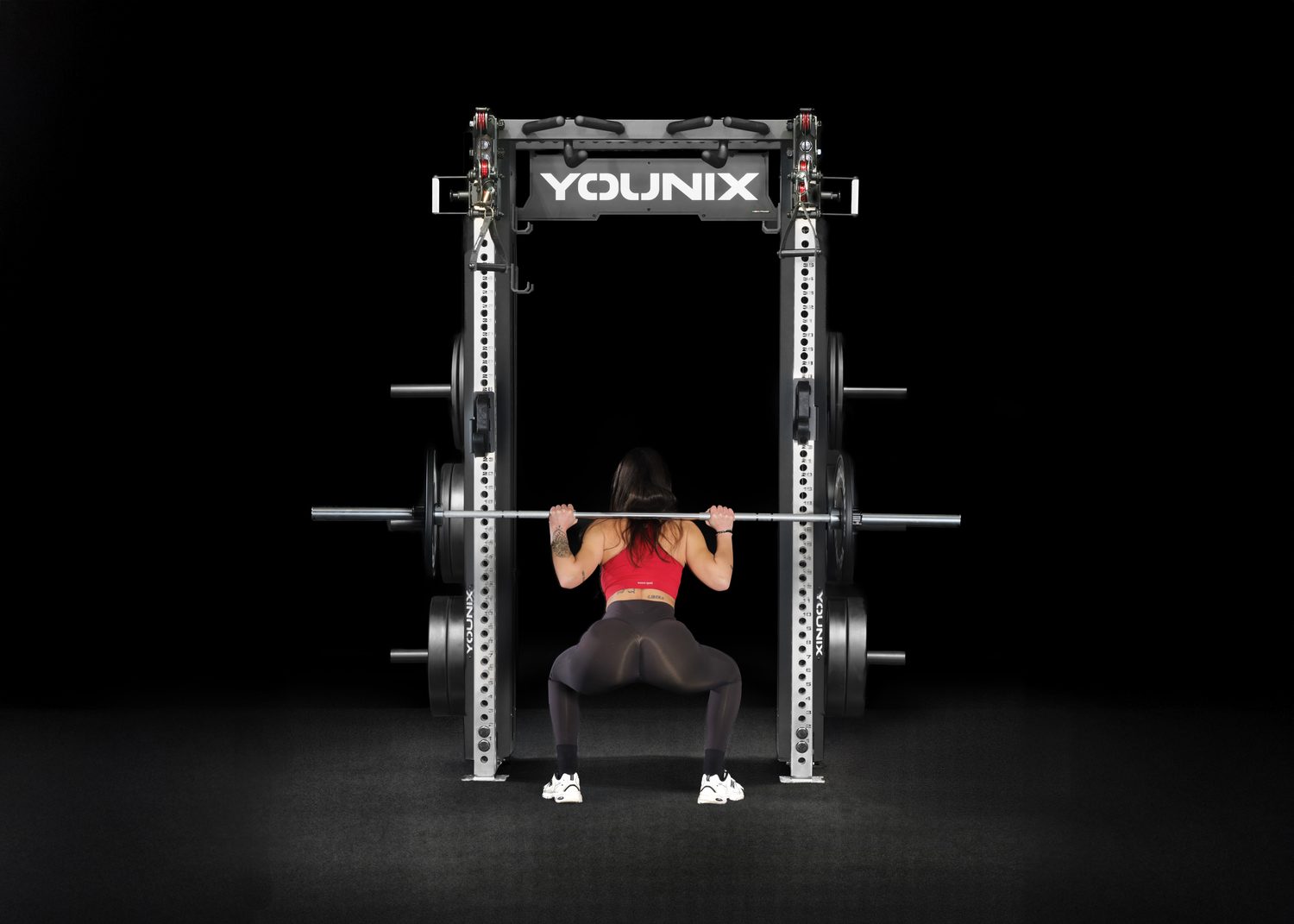

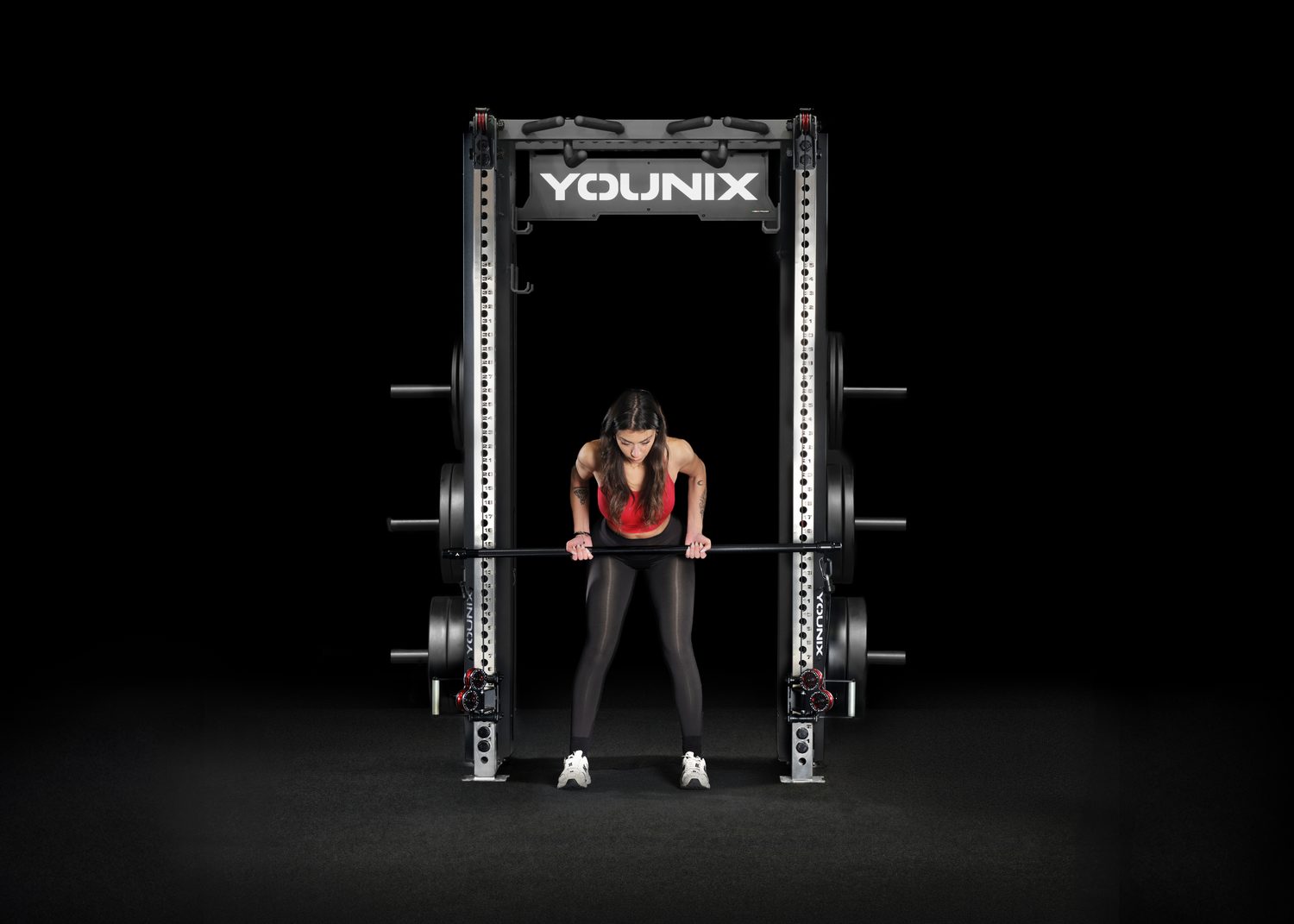

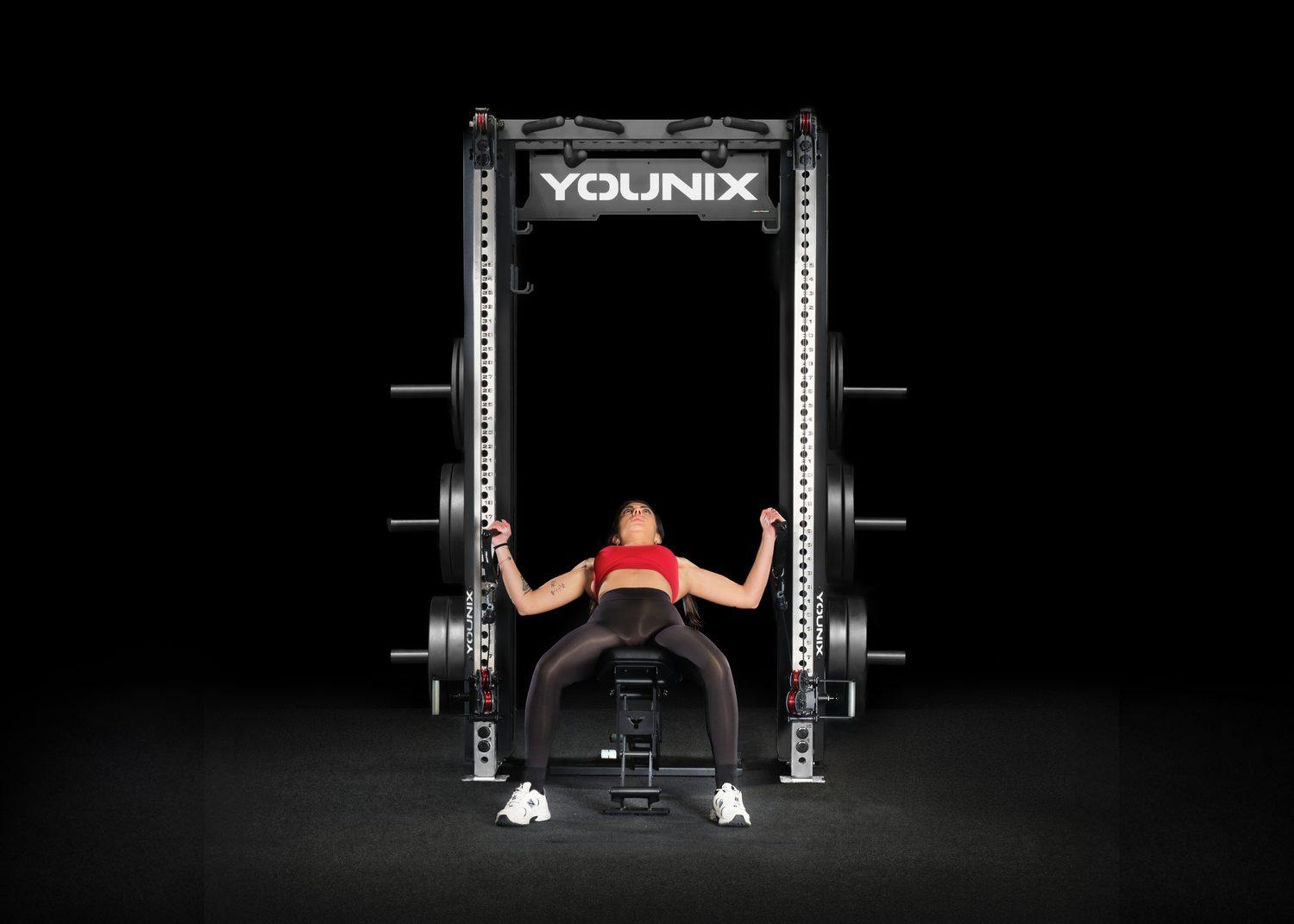

CABLE, BARBELL AND BODYWEIGHT TRAINING. ONE CORE SYSTEM.
THE NUMBERS THAT DEFINE THE SYSTEM.
Cable Rack
- Footprint
- 132 × 74 cm
- Overall height
- 241 cm
- Physical stack / side
- 120 kg
- Effective handle resistance / side
- Up to 60 kg
- Cable ratio
- 2:1
- Pulley swivel range
- 160°
- Rack positions
- 35
- Nominal spacing
- 50 mm
- Lateral plate storage
- 6 pins
- Recommended training area
- 280 × 325 cm
- Recommended room height
- 270 cm
Adjustable Bench
- Footprint
- 128 × 70 cm
- Weight
- 37 kg
- Backrest range
- −15° to 90°
- Adjustment combinations
- 24 · 8 backrest + 3 seat
- Tested to
- 390 kg
Olympic Bar · 20 kg
- Weight
- 20 kg
- Bar length
- 220 cm
- Shaft diameter
- 28 mm
- Tensile strength
- 216,000 PSI
- Finish
- Hard chrome
Premium Bumpers
- Diameter
- 450 mm · IWF
- Bore
- 50.4 mm
- Weight tolerance
- ±0.3%
- Hardness
- Shore A ≈ 88
- Drop tested
- 30,000 drops
TRAINING FIRST. ENGINEERING AROUND IT.
Younix is founded and product-led by Umberto Avino, whose background combines Sports Science, coaching, gym operation, product development and industrial research. Cable Rack was developed from the same principle: understand the training function first, then build the system around it.
Cable Rack, configured for real private and professional spaces.
Cable Rack can become part of a numbered Cable Art System.
Start with your space.
We'll define the system.
Share your space and training needs. Younix will define the right configuration and the next technical step.
